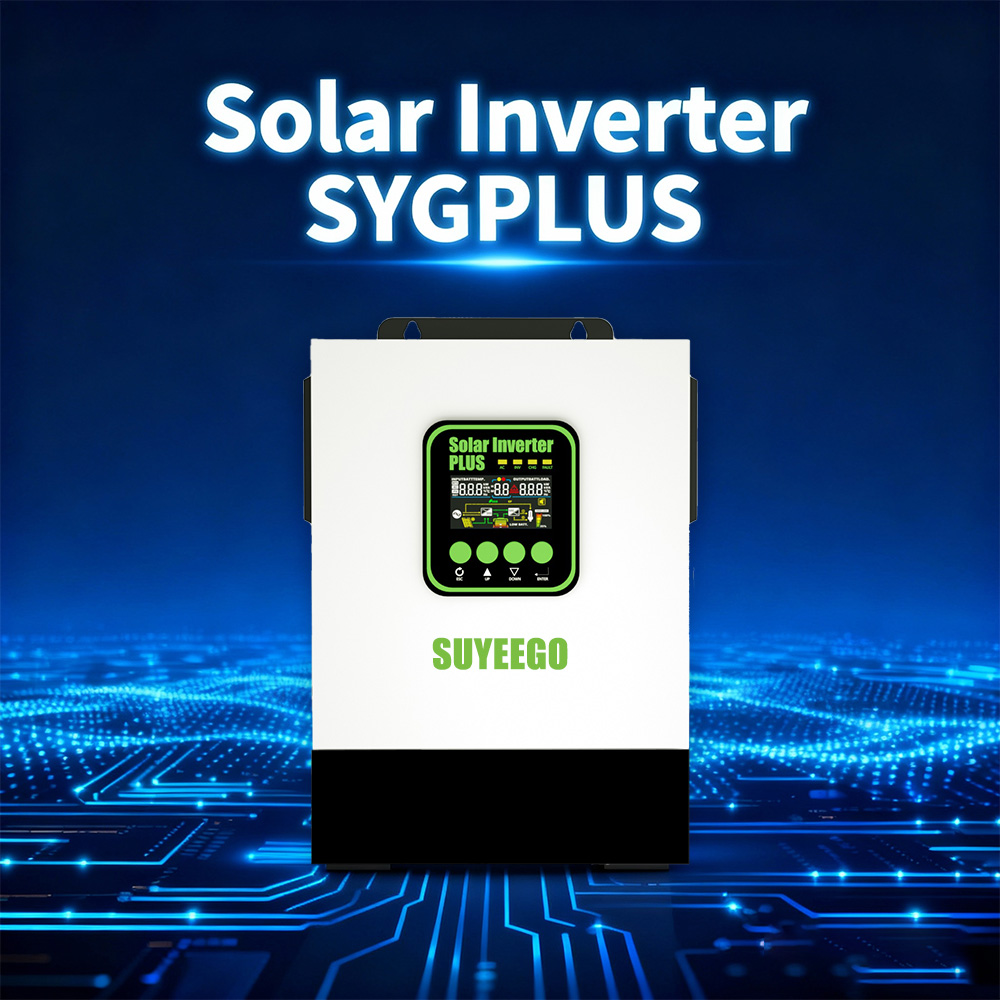

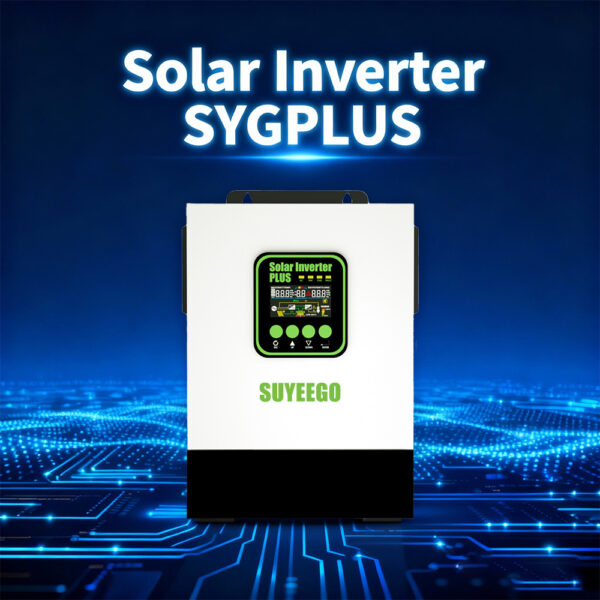

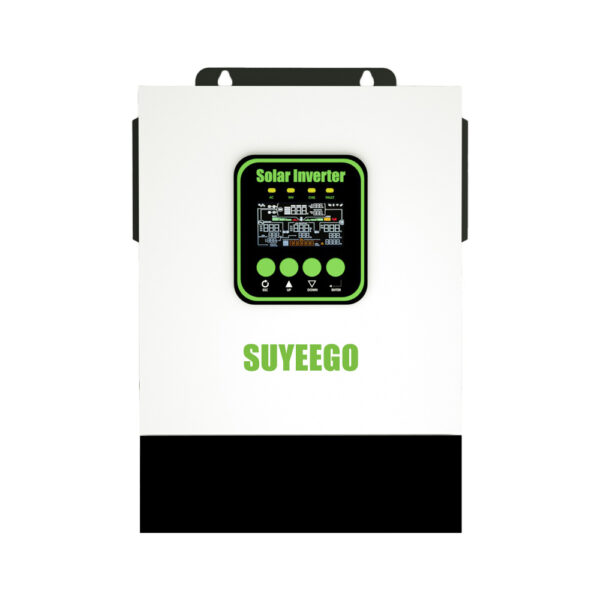

SYGPLUS solar inverter
SUYEEGO Solar inverter 1.5kw 2.5kw 4kw 5.5kw 6.5kw 12kw hybrid invertor pure sine wave inverter
Technical Features
- Up to 18A PV input current Up to 100A charging current
- Up to 99.9% MPPT trackingefficiency
- Comprehensive protection
- Max.Open Circuit Voltage 450VDC
- Power the Load Without Battery
|
Model
|
SYGPLUS1.5KW
|
SYGPLUS 12KW
|
|
Maximum PV Input Power
|
800W
|
15000W
|
|
Rated Output Power
|
1500W
|
12000W
|
|
Maximum Solar Charging Current
|
100A
|
160A
|
|
Maximum DC Voltage
|
17-115VDC
|
60-450VDC
|
|
Nominal Output Voltage
|
220/230/240VAC
|
220/230/240VAC
|
|
Nominal DC Votage
|
12VDC
|
48VDC
|
|
Nominal operating frequency
|
50/60Hz
|
50/60Hz
|
|
Output Waveform
|
Pure sine wave
|
Pure sine wave
|
|
Efficiency(DC to AC)
|
94%
|
94%
|
|
Dimension,Dx W x H(mm)
|
320*227*1000
|
525*435*138
|
|
Net Weight(kgs)
|
3.5
|
14
|
|
Communication Port
|
RS485/WIFI/LITHIUM BATTERY
|
RS485/WIFI/LITHIUM BATTERY
|
