SYGEP Dual Voltage Inverter
SUYEEGO Dual Voltage 12/24v solar inverter 4.2kw pure sine wave inverter with mppt solar charge controller
Technical Features

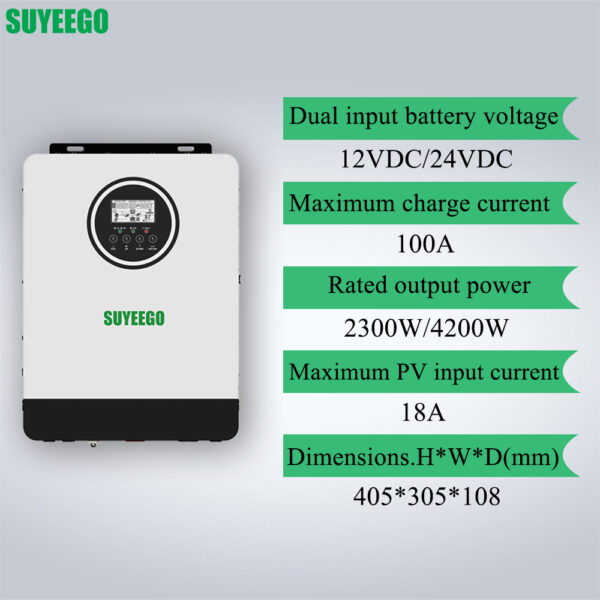

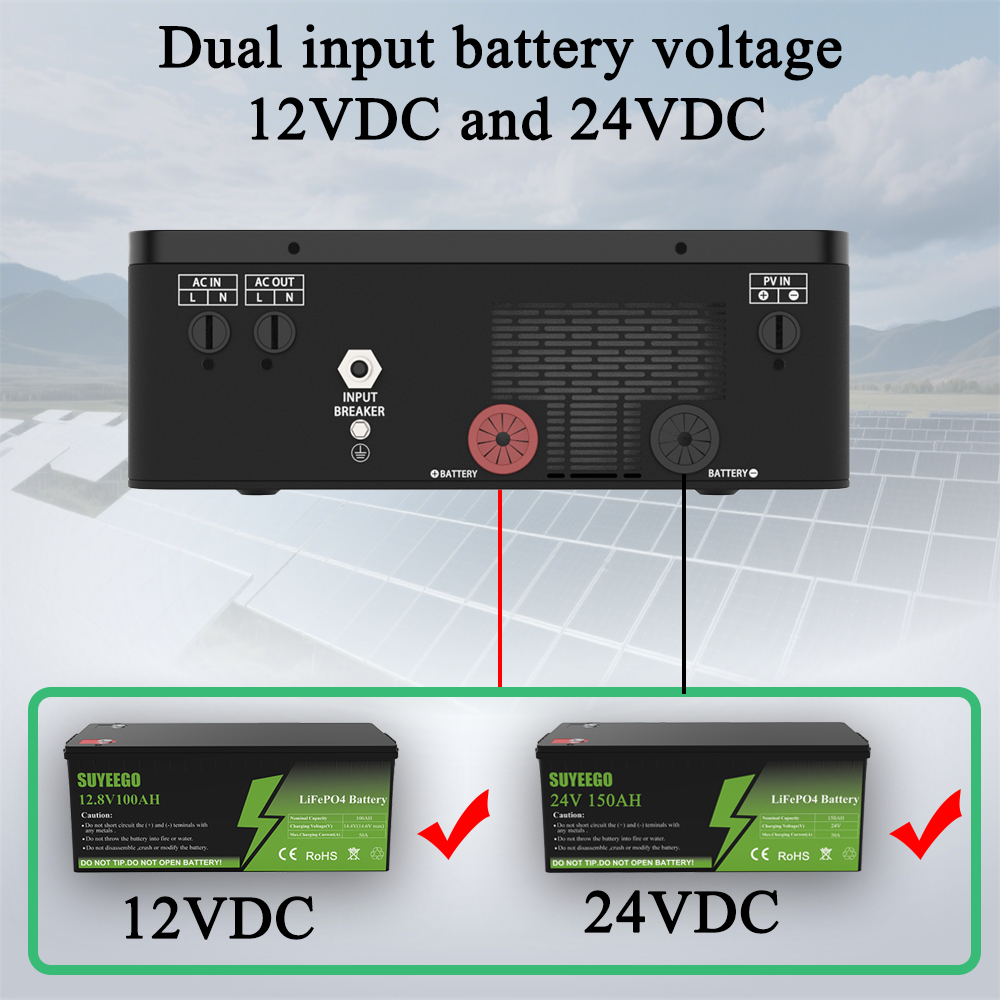

1.Dual input battery voltage:12VDC and 24VDC
2.Rated power is 2300W when work at 12VDC,rated power is 4200W when work at 24VDC
3.Pure sine wave output inverter

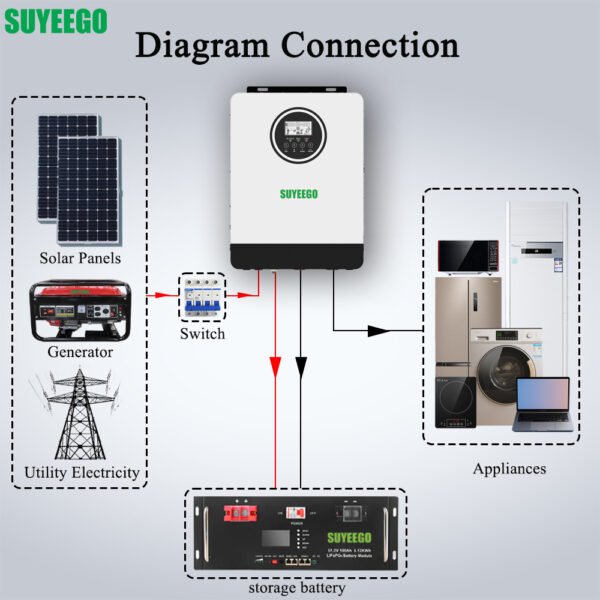

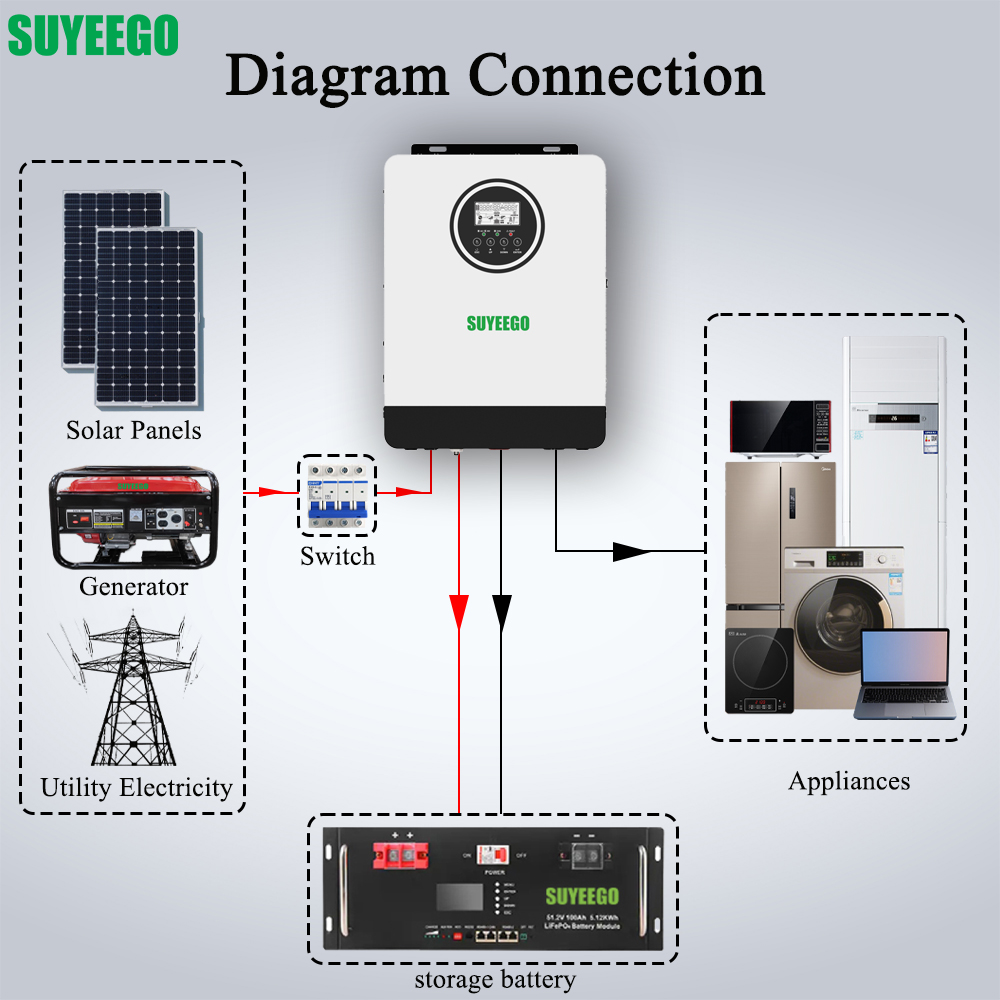

4.Solar energy and utlity grid can power loads at the same time
5.AC input is compatible with mains and generator

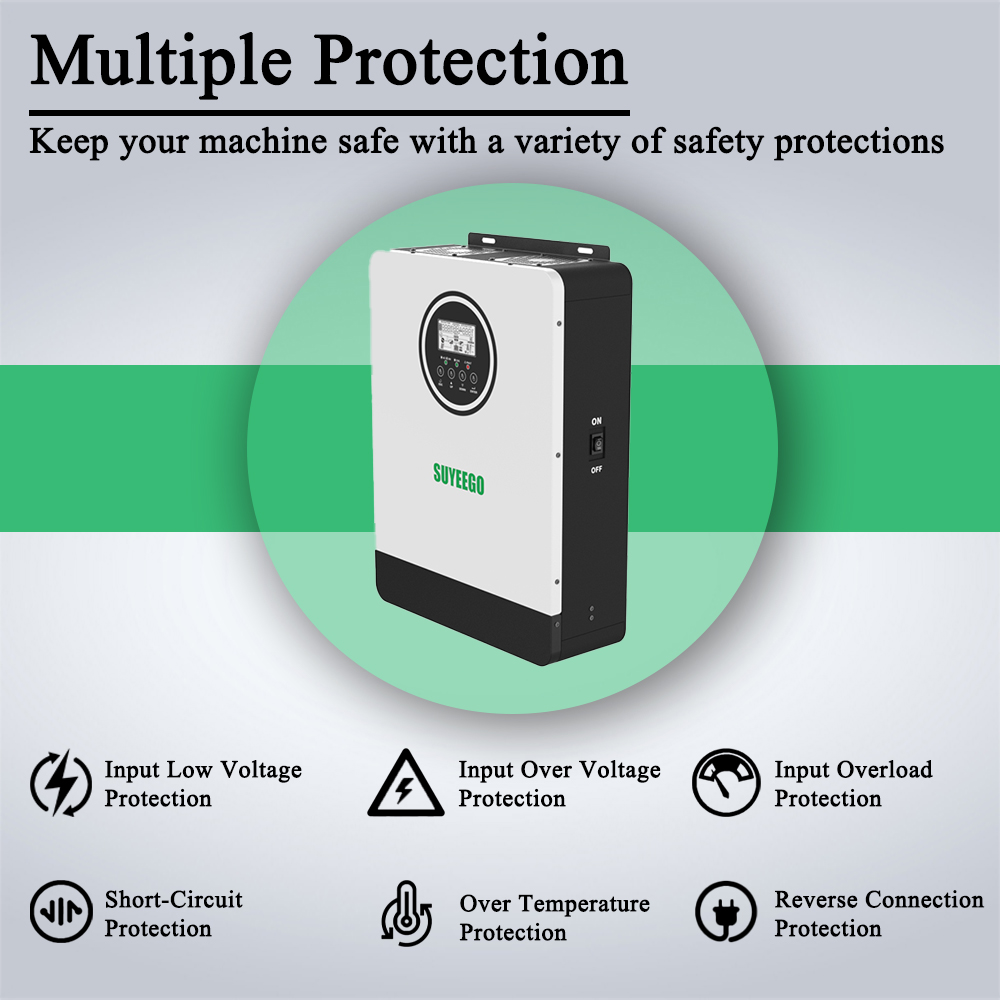

6.Overload/Overtemperature/ short circuit protection
7.Built-in MPPT operating voltage range 55V-500V
|
Model
|
SYGEP-4200H-12/24V 2300W/4200W
|
|
|
Rated Output Power
|
2300W/4200W
|
|
|
AC Input
|
||
|
Voltage
|
220/230/240VAC
|
|
|
Selectable Voltage Range
|
170~280VAC (For Personal Computers)
|
|
|
90~280VAC(For Home Appliances)
|
||
|
Frequency Range
|
50Hz/60Hz(Auto sensing)
|
|
|
AC Voltage Regulation
|
230VAC±5%
|
|
|
Surge Power
|
8600W
|
|
|
Efficiency(Peak)PV to INV
|
98%
|
|
|
Efficiency (Peak)Battery to INV
|
97%
|
|
|
Transfer Time
|
10ms(For Personal Computers);20ms(For Home Appliances)
|
|
|
BATTERY & AC CHARGER
|
||
|
Battery Voltage
|
12/24VDC
|
|
|
Floating Charge Voltge
|
27VDC
|
|
|
Overcharge Protection
|
33VDC
|
|
|
Maximum AC Charge Current
|
100A
|
|
|
SOLAR CHARGER
|
||
|
Maximun PV Array Power
|
4000W
|
|
|
MPPT Range@Operating Voltage
|
55~500VDC
|
|
|
Maximun PV Array Open Circuit Voltage
|
500VDC
|
|
|
Maximun Charging Current
|
100A
|
|
|
PHYSICAL
|
||
|
Dimension,D*W*H(mm)
|
442*350*110 mm
|
|
|
Cartoon Dimension, D*W*H(mm)
|
500*42.5*190 mm
|
|
|
Net Weight (KG)
|
8
|
|
|
Gross Weight(KG)
|
9
|
|
|

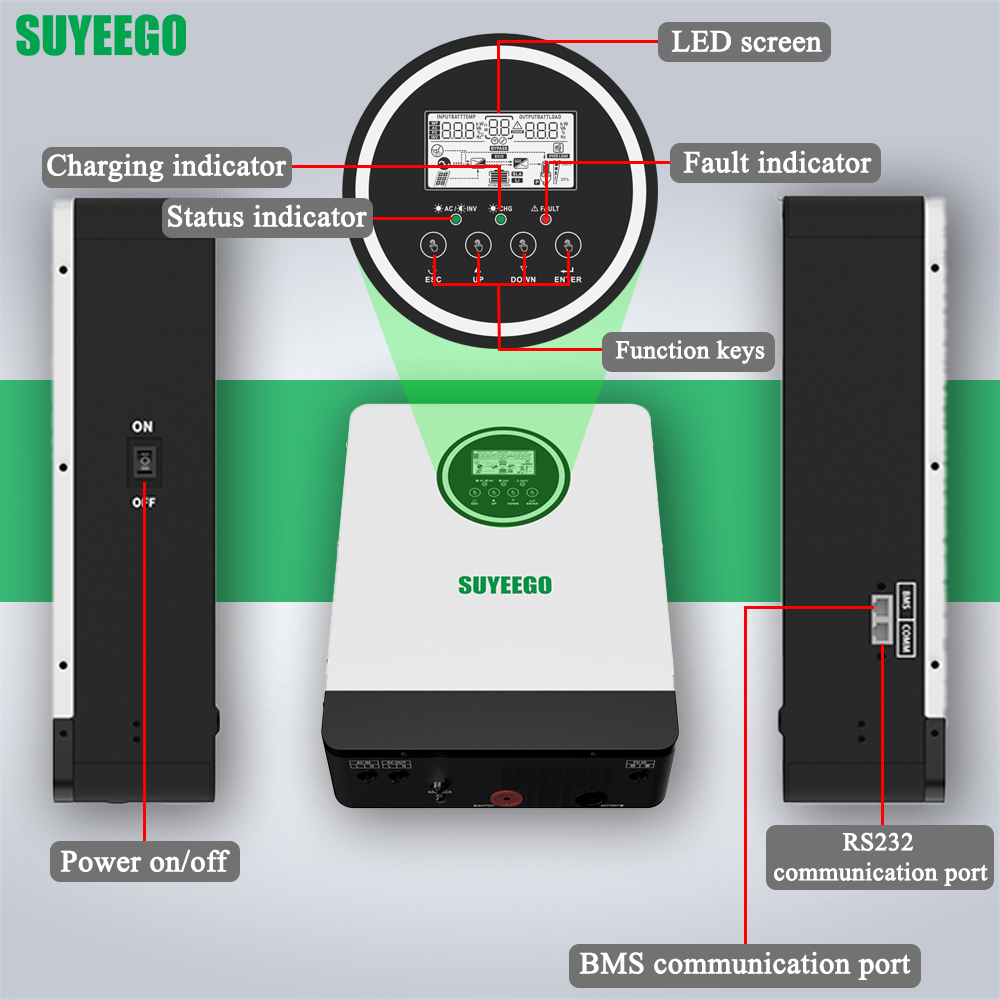

Communication interface
|
RS232/RS485/GPRS/WIFI
|
|
|
OPERATING ENVIRONMENT
|
||
|
Humidity
|
5% to 95% Relative Humidity ( Non~condensing)
|
|
|
Operating Temperature
|
-10~50℃
|
|
